Capacity : 100 – 1000 ml / hr water evaporation
Used for spray drying & encapsulation and others; Designed for solvent and aqueous feeds; Visible process due to glass assembly; Easy to handle glassware High performance cyclone; High yields; Self contained and supplied complete and ready for immediate operation; Compact design and easy to move around; Fast drying process [up to 1000 ml / hr]; Shorter times to optimize formulations.
Reproducible powder production at lab scale; Ideal for scale up to pilot or production; All units feature a simple and intuitive touch screen opration system with recipe funtions and USB data logger.
Consistent atomization

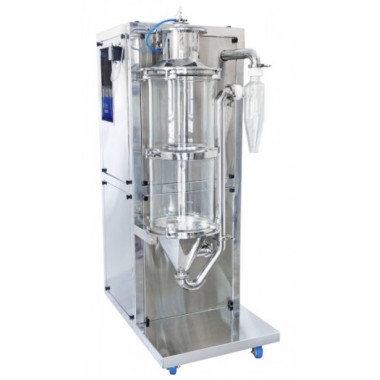

One of the reasons for the reproducibility of the Lab 1 Glass Laboratory Spray Dryer is the durable and precise nozzle technology. The nozzle comes with a de blocker needle which can be pushed through the nozzle in case of clogging. The de blocker frequency is user selectable. Optional, nozzle cooling is available. The nozzle can be cooled with regular tap water. Spraying of heat sensitive product is possible.
Touch screen PLC operating system
The touch panel PLC operating system allows the user to control all the system parameters with the touch of a finger. The blower, air heater and feed liquid pump are operated from this panel. The system parameters such as inlet hot air temperature, outlet exhaust air temperature, feed and blower frequency are set by touching the corresponding displayed value and entering the new value in the set screen that appears.
A data trend screen shows a record of the air temperatures. heater output and feed liquid pump output during the experiment. The user can visually see the temperature record and quickly understand it.
For data analysis, a daily report screen and experiment data can be viewed with option to save to an USB flash drive for use in a PC computer.
Access to only two sides
Access to only two sides of the spray dryer is required for normal operation. The touch panel and product collection pot are located so that all operations are performed from one operating point.
